MTB

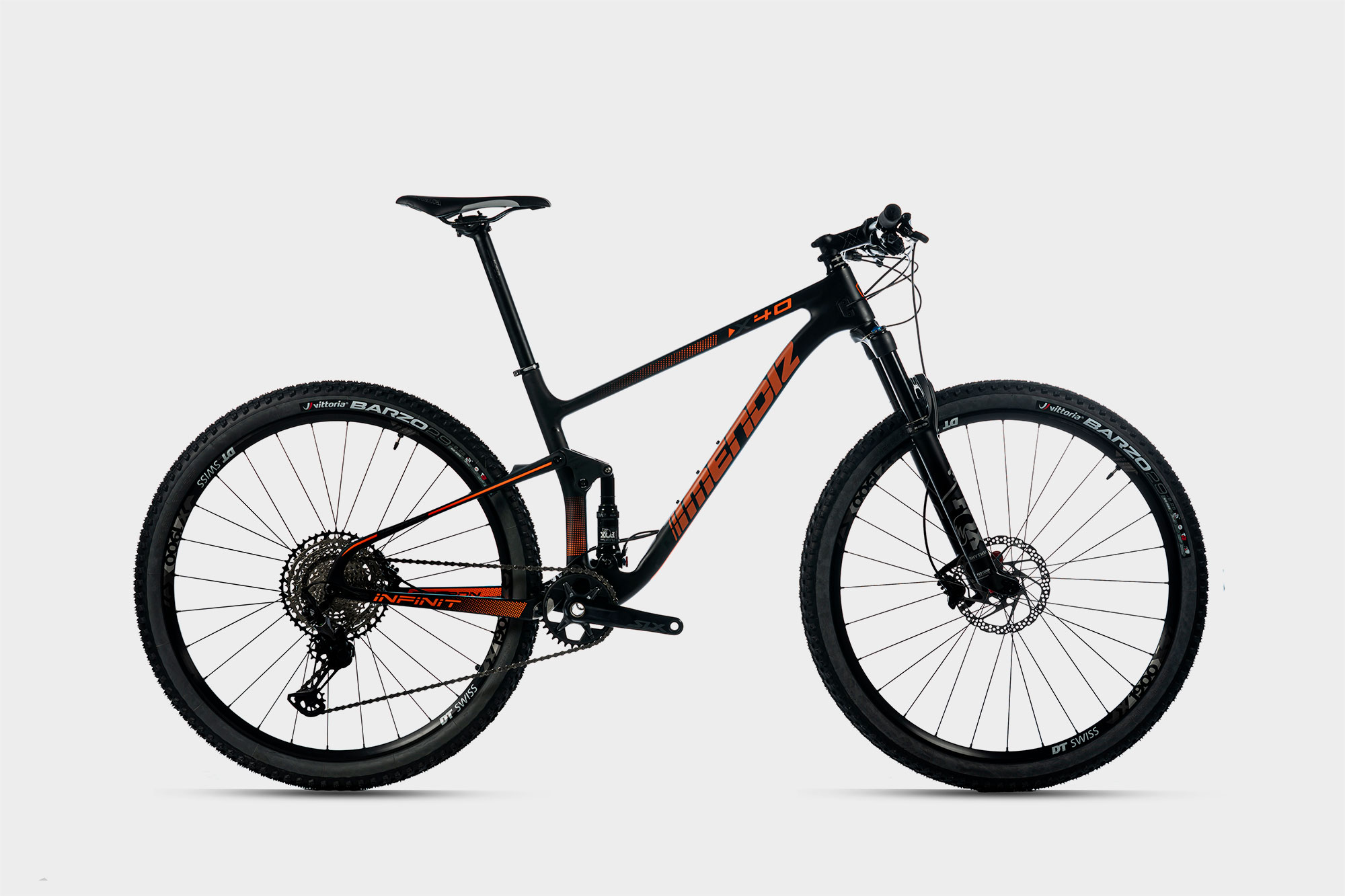

Configurator X40 SL DC 120MM

Find a dealer

Select model

SLDC.05 SLDC.01
Rear Shock
ROCK SHOX SID LUXE 165X40
Fork
ROCK SHOX SID 120
Rear Derailleur
SRAM GX EAGLE LUNAR
Shift Lever
SRAM GX EAGLE LUNAR
Cranks
SRAM GX EAGLE 34 LUNAR
Cassette
SRAM XG 1275 EAGLE 10/52
Brakes
SHIMANO MT501
Brake Rotor
SHIMANO RT-56 / 180mm DEL. / 160mm TRAS.
Wheel
DT SWISS X1900
Cubiertas
VITTORIA BARZO TNT 29X2.25
Cockpit
DEDA PEAK
Handlebar
DEDA PEAK FLAT
Seatpost
DEDA PEAK 31,6
Saddle
SELLE ITALIA MODEL X
Rear Shock
ROCK SHOX SID LUXE 165X40
Fork
ROCK SHOX SID 120
Rear Derailleur
CAMBIO GX EAGLE AXS
Shift Lever
GX AXS EAGLE
Cranks
SRAM GX EAGLE 34 LUNAR
Cassette
SRAM XG 1275 EAGLE 10/52
Brakes
SHIMANO MT501
Brake Rotor
SHIMANO RT-56 / 180mm DEL. / 160mm TRAS.
Wheel
DT SWISS X1900
Cubiertas
VITTORIA BARZO TNT 29X2.25
Cockpit
DEDA PEAK
Handlebar
DEDA PEAK FLAT
Seatpost
DEDA PEAK 31,6
Saddle
SELLE ITALIA MODEL X
Next

Choose size

15'' 17'' 19'' 21''
B. Seat Tube Length
410 mm.
L. Top Tube Length
579 mm.
T. Head Tube Length
95 mm.
P. Chainstay Length
438 mm.
C. Wheel Base
1159 mm.
F. Bottom Bracket to front wheel center
725 mm.
X. Head Tube Angle
66°
Z. Seat Tube Angle
76°
S. Stack
583 mm.
R. Reach
445
B. Seat Tube Length
440 mm.
L. Top Tube Length
612 mm.
T. Head Tube Length
105 mm.
P. Chainstay Length
438 mm.
C. Wheel Base
1193 mm.
F. Bottom Bracket to front wheel center
759 mm.
X. Head Tube Angle
66°
Z. Seat Tube Angle
76°
S. Stack
592 mm.
R. Reach
475
B. Seat Tube Length
490 mm.
L. Top Tube Length
640 mm.
T. Head Tube Length
120 mm.
P. Chainstay Length
438 mm.
C. Wheel Base
1224 mm.
F. Bottom Bracket to front wheel center
789 mm.
X. Head Tube Angle
66°
Z. Seat Tube Angle
76°
S. Stack
606 mm.
R. Reach
500
B. Seat Tube Length
540 mm.
L. Top Tube Length
664 mm.
T. Head Tube Length
140 mm.
P. Chainstay Length
438 mm.
C. Wheel Base
1251 mm.
F. Bottom Bracket to front wheel center
817 mm.
X. Head Tube Angle
66°
Z. Seat Tube Angle
76°
S. Stack
625 mm.
R. Reach
520
Next

Customize add-ons

Next
