Road

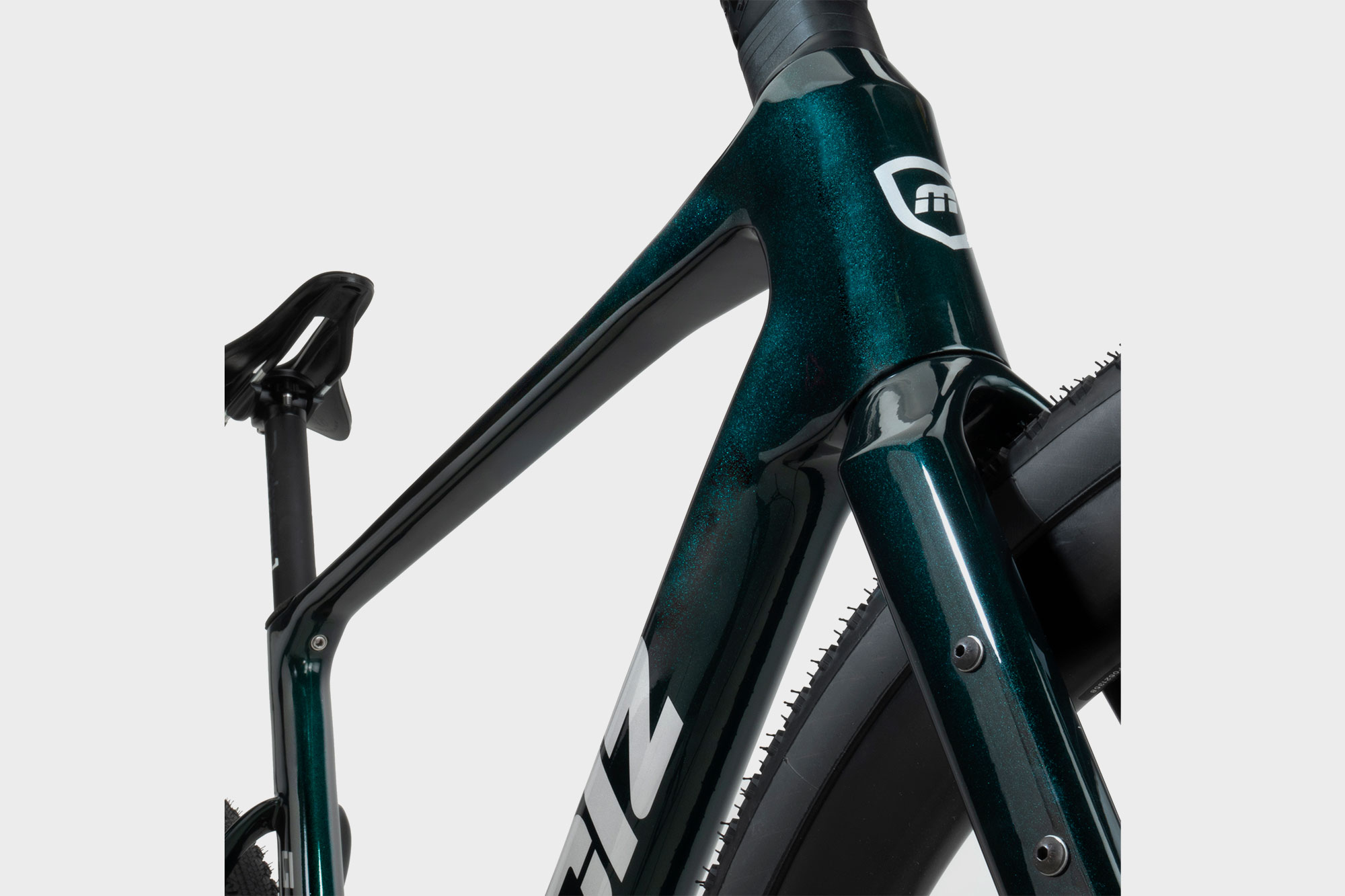

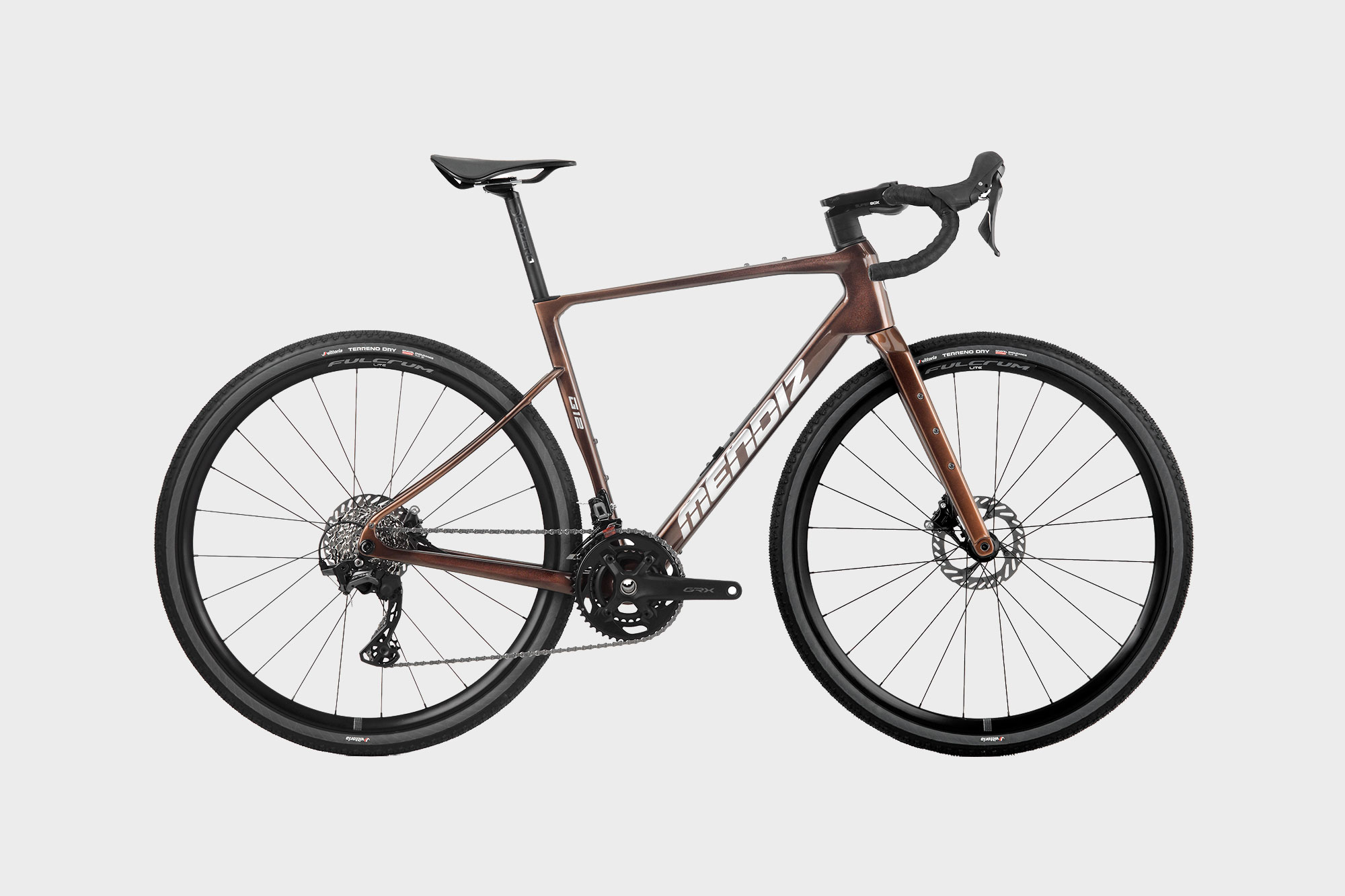

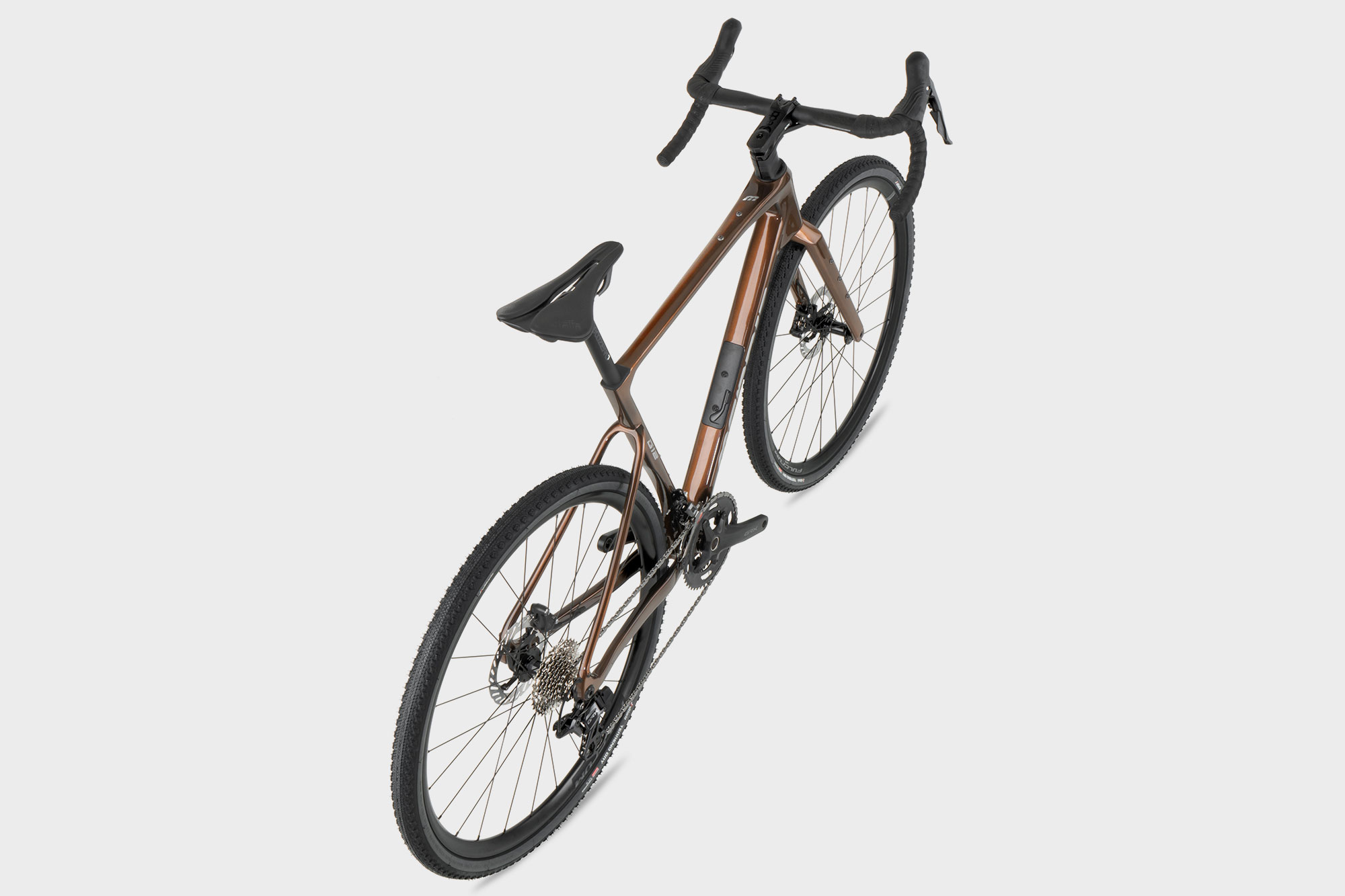

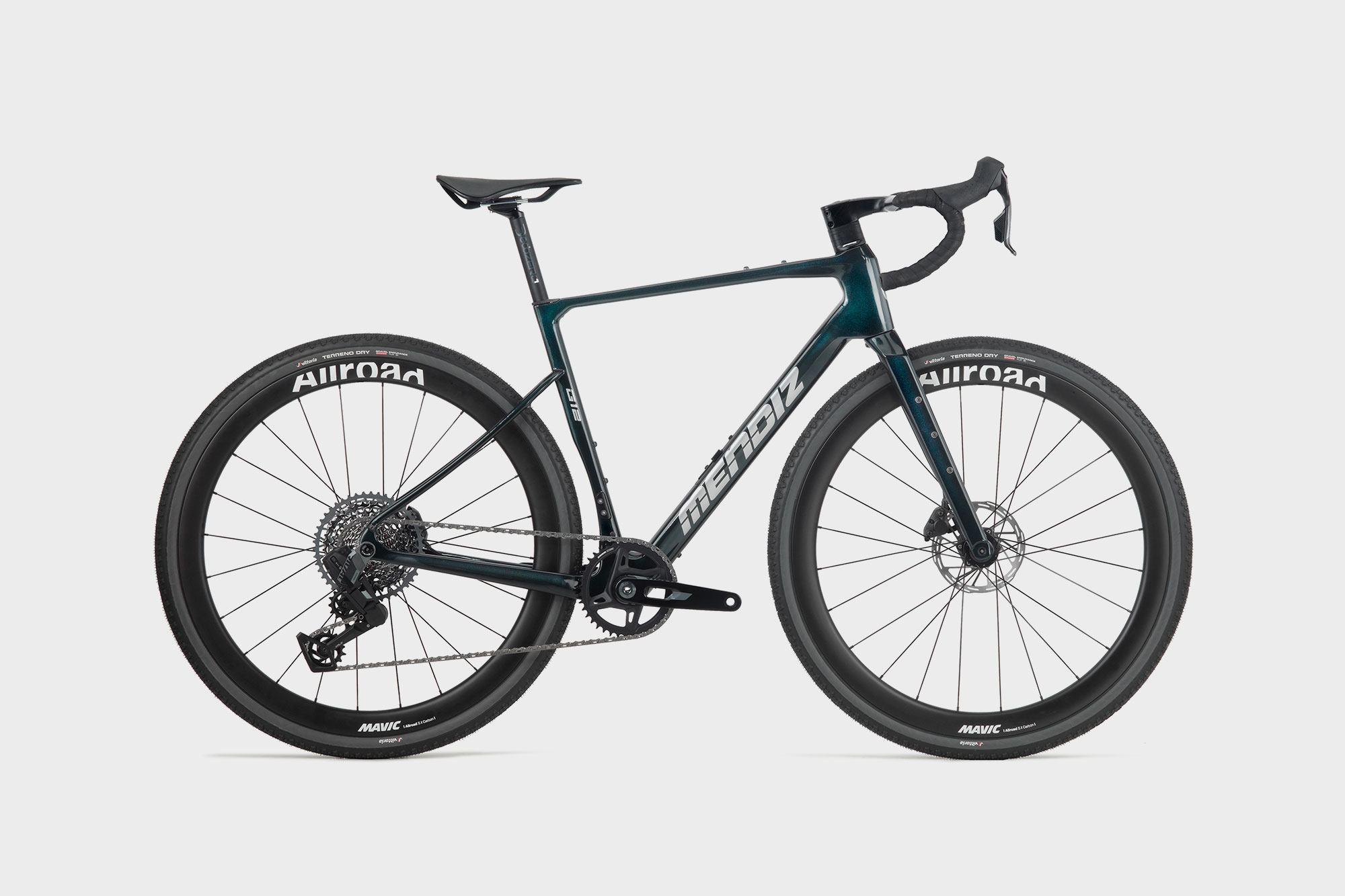

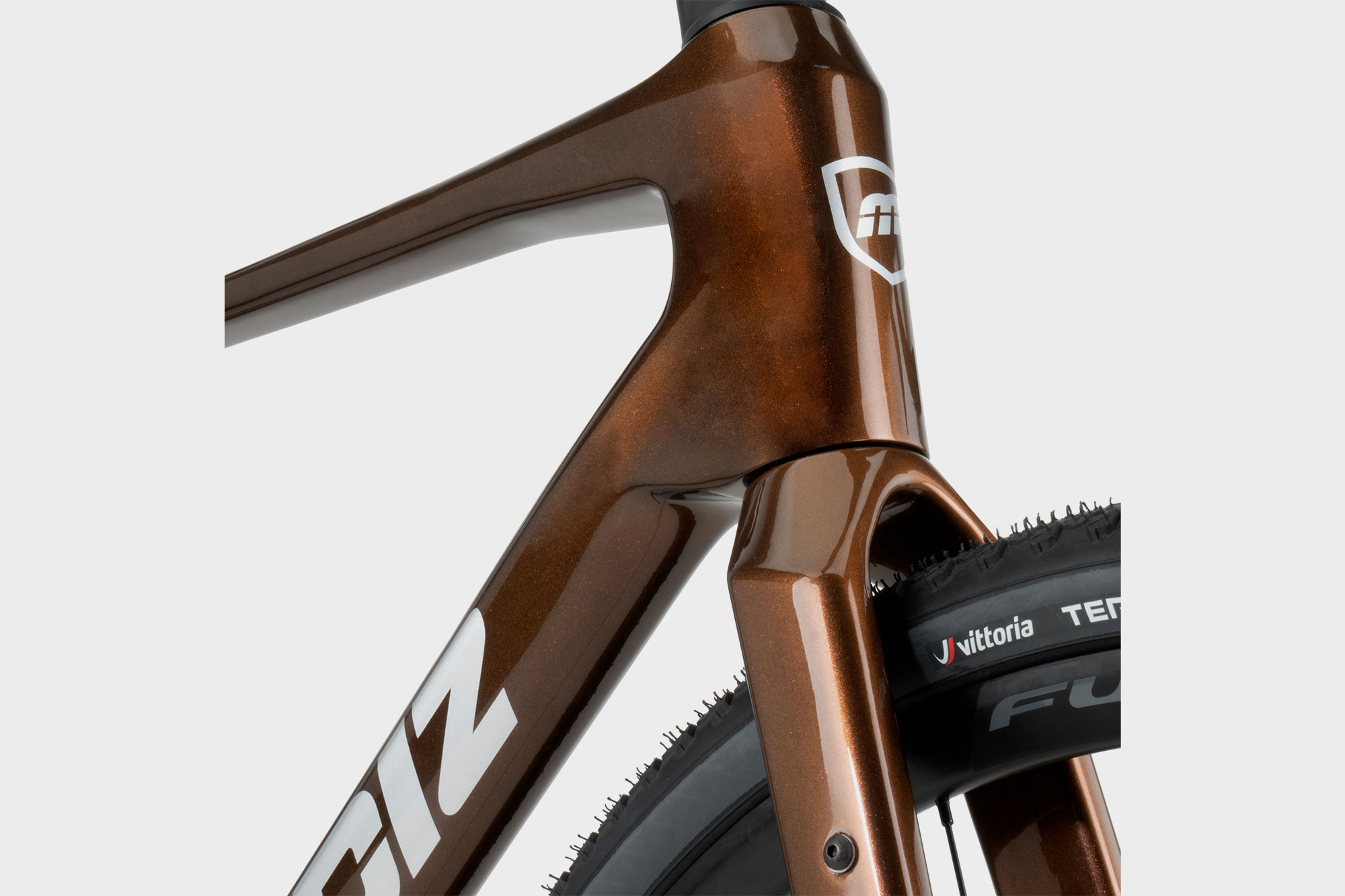

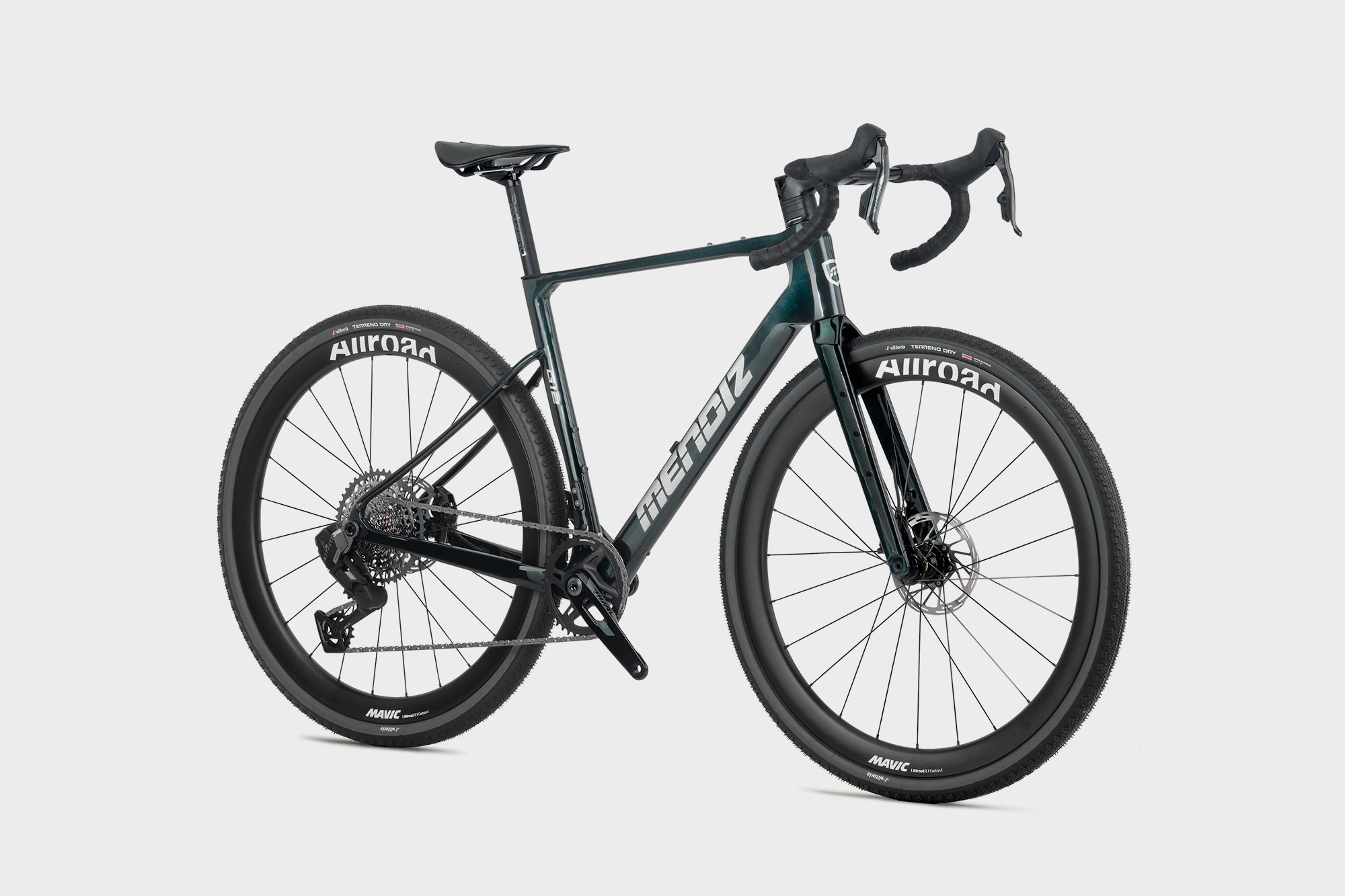

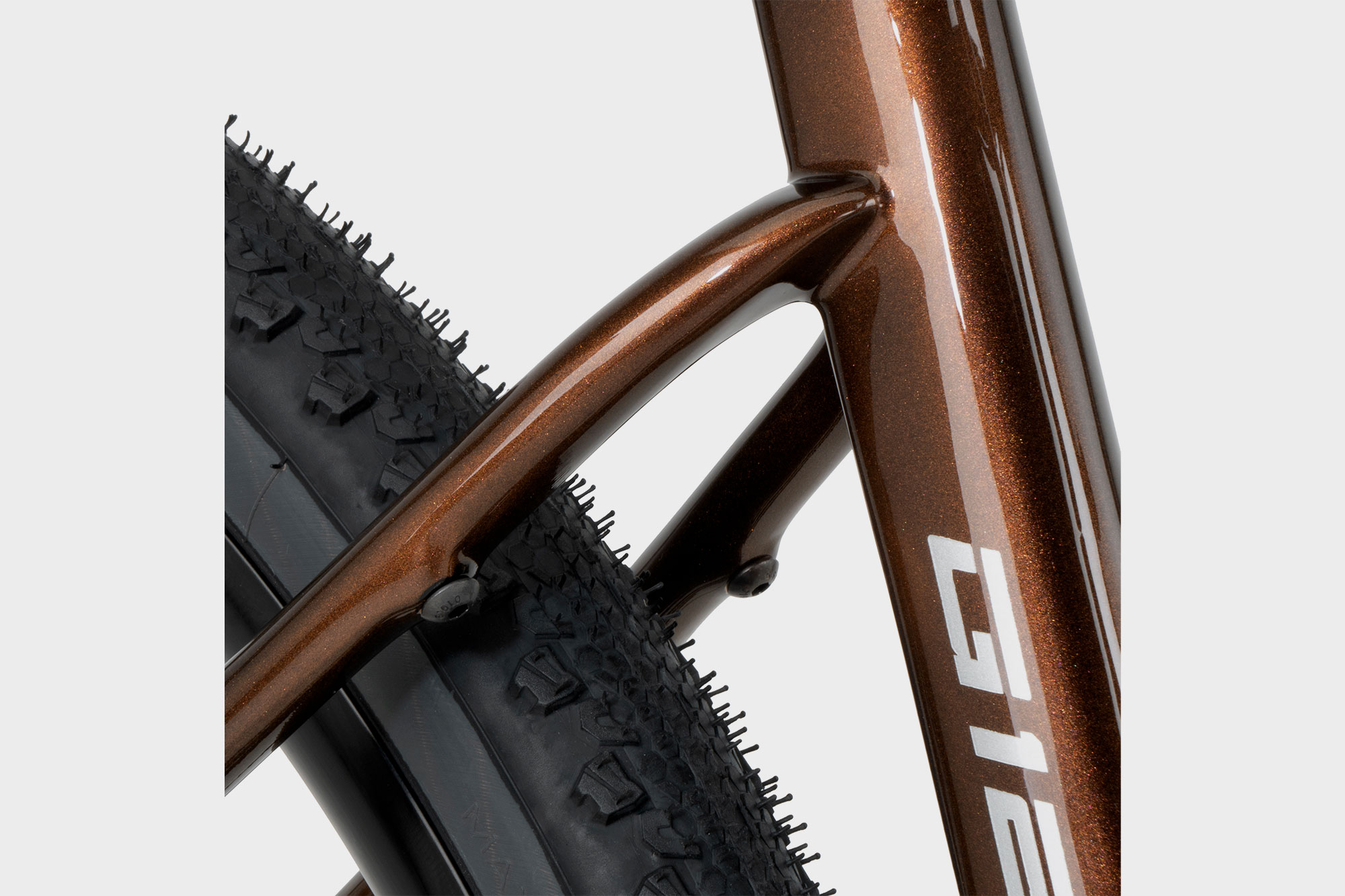

Configurator G12mp.Limit
Select model
- Rear Derailleur
- Shimano GRX820
- Front Derailleur
- Shimano GRX820
- Shift Lever
- Shimano GRX610 2X12
- Cranks
- SHIMANO GRX610 30/46
- Cassette
- SHIMANO R7100 12v 11/34
- Brakes
- SHIMANO GRX 410
- Brake Rotor
- SHIMANO CL700 160 mm
- Wheel
- FULCRUM LITE GR
- Cockpit
- DEDA SUPERBOX V2
- Handlebar
- DEDA SUPERZERO GRAVEL ALU
- Seatpost
- DEDA ZERO1 27,2
- Saddle
- SELLE ITALIA MODEL X
- Rear Derailleur
- Shimano GRX 717 DI2 1X12
- Shift Lever
- Shimano GRX 715 DI2 1X12
- Cranks
- SHIMANO GRX610 40
- Cassette
- SHIMANO M6100 12v 10/51
- Brakes
- SHIMANO GRX 410
- Brake Rotor
- SHIMANO CL700 160 mm
- Wheel
- FULCRUM LITE GR
- Cockpit
- Integrated
- Handlebar
- VISION METRON SMR
- Seatpost
- DEDA ZERO1 27,2
- Saddle
- SELLE ITALIA MODEL X
- Rear Derailleur
- SRAM RIVAL XPLR AXS E1 1X13
- Shift Lever
- SRAM RIVAL AXS E1
- Cranks
- SRAM RIVAL XPLR E1 40
- Cassette
- SRAM RIVAL XPLR E1 XG 1351
- Brakes
- SRAM RIVAL AXS E1
- Brake Rotor
- SRAM PACELINE
- Wheel
- FULCRUM LITE GR
- Cockpit
- Integrated
- Handlebar
- VISION METRON SMR
- Seatpost
- DEDA ZERO1 27,2
- Saddle
- SELLE ITALIA MODEL X
- Rear Derailleur
- SRAM RIVAL XPLR AXS E1 1X13
- Shift Lever
- SRAM RIVAL AXS E1
- Cranks
- SRAM RIVAL XPLR E1 40
- Cassette
- SRAM RIVAL XPLR E1 XG 1351
- Brakes
- SRAM RIVAL AXS E1
- Brake Rotor
- SRAM PACELINE
- Wheel
- MAVIC ALL ROAD S CARBON
- Cockpit
- Integrated
- Handlebar
- VISION METRON SMR
- Seatpost
- DEDA ZERO1 27,2
- Saddle
- SELLE ITALIA MODEL X

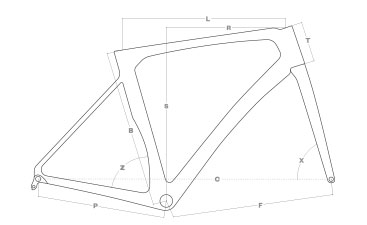

Choose size
- B. Seat Tube Length
- 440 mm.
- L. Top Tube Length
- 525 mm.
- T. Head Tube Length
- 125 mm.
- P. Chainstay Length
- 435 mm.
- C. Wheel Base
- 11020 mm.
- F. Bottom Bracket to front wheel center
- 594 mm.
- X. Head Tube Angle
- 70,5°
- Z. Seat Tube Angle
- 74°
- S. Stack
- 541 mm.
- R. Reach
- 370 mm.
- B. Seat Tube Length
- 470 mm.
- L. Top Tube Length
- 535 mm.
- T. Head Tube Length
- 140 mm.
- P. Chainstay Length
- 435 mm.
- C. Wheel Base
- 1021 mm.
- F. Bottom Bracket to front wheel center
- 595 mm.
- X. Head Tube Angle
- 71°
- Z. Seat Tube Angle
- 73,5°
- S. Stack
- 558 mm.
- R. Reach
- 370 mm.
- B. Seat Tube Length
- 500 mm.
- L. Top Tube Length
- 545 mm.
- T. Head Tube Length
- 150 mm.
- P. Chainstay Length
- 435 mm.
- C. Wheel Base
- 1021 mm.
- F. Bottom Bracket to front wheel center
- 595 mm.
- X. Head Tube Angle
- 71,5°
- Z. Seat Tube Angle
- 73°
- S. Stack
- 569 mm.
- R. Reach
- 371 mm.
- B. Seat Tube Length
- 530 mm.
- L. Top Tube Length
- 560 mm.
- T. Head Tube Length
- 170 mm.
- P. Chainstay Length
- 435 mm.
- C. Wheel Base
- 1026 mm.
- F. Bottom Bracket to front wheel center
- 600 mm.
- X. Head Tube Angle
- 72°
- Z. Seat Tube Angle
- 72,5°
- S. Stack
- 590 mm.
- R. Reach
- 374 mm.
- B. Seat Tube Length
- 560 mm.
- L. Top Tube Length
- 585 mm.
- T. Head Tube Length
- 190 mm.
- P. Chainstay Length
- 435 mm.
- C. Wheel Base
- 1046 mm.
- F. Bottom Bracket to front wheel center
- 620 mm.
- X. Head Tube Angle
- 72,5°
- Z. Seat Tube Angle
- 72,5°
- S. Stack
- 611 mm.
- R. Reach
- 392 mm.
