Select model
- Rear Derailleur
- SHIMANO TIAGRA 4700 10v
- Front Derailleur
- SHIMANO TIAGRA 4700
- Shift Lever
- SHIMANO TIAGRA 4700
- Cranks
- SHIMANO TIAGRA 4700 34x 50
- Cassette
- SHIMANO TIAGRA HG500 11x 32
- Brakes
- SHIMANO TIAGRA 4700
- Brake Rotor
- SHIMANO RT70 140 mm
- Wheel
- MAVIC AKSIUM
- Cockpit
- DEDA ZERO
- Handlebar
- DEDA ZERO
- Seatpost
- DEDA ZERO 27,2
- Saddle
- SELLE ITALIA MODEL X
- Rear Derailleur
- SHIMANO 105 7000 11v
- Front Derailleur
- SHIMANO 105 7000
- Shift Lever
- SHIMANO 105 7020
- Cranks
- SHIMANO 105 7000 34x 50
- Cassette
- SHIMANO 105 R7000 11x 30
- Brakes
- SHIMANO 105 7020
- Brake Rotor
- SHIMANO RT70 140 mm
- Wheel
- MAVIC AKSIUM
- Cockpit
- DEDA ZERO
- Handlebar
- DEDA ZERO
- Seatpost
- DEDA ZERO 27,2
- Saddle
- SELLE ITALIA MODEL X

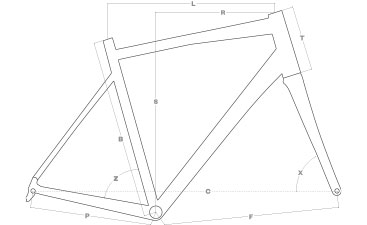

Choose size
- B. Seat Tube Length
- 450 mm.
- L. Top Tube Length
- 515 mm.
- T. Head Tube Length
- 130 mm.
- P. Chainstay Length
- 405 mm.
- C. Wheel Base
- 973 mm.
- F. Bottom Bracket to front wheel center
- 578 mm.
- X. Head Tube Angle
- 71,5°
- Z. Seat Tube Angle
- 75°
- S. Stack
- 527 mm.
- R. Reach
- 373 mm.
- B. Seat Tube Length
- 480 mm.
- L. Top Tube Length
- 536 mm.
- T. Head Tube Length
- 150 mm.
- P. Chainstay Length
- 405 mm.
- C. Wheel Base
- 976 mm.
- F. Bottom Bracket to front wheel center
- 581 mm.
- X. Head Tube Angle
- 72,5°
- Z. Seat Tube Angle
- 74°
- S. Stack
- 550 mm.
- R. Reach
- 378 mm.
- B. Seat Tube Length
- 510 mm.
- L. Top Tube Length
- 548 mm.
- T. Head Tube Length
- 170 mm.
- P. Chainstay Length
- 405 mm.
- C. Wheel Base
- 978 mm.
- F. Bottom Bracket to front wheel center
- 583 mm.
- X. Head Tube Angle
- 73°
- Z. Seat Tube Angle
- 73,5°
- S. Stack
- 570 mm.
- R. Reach
- 379 mm.
- B. Seat Tube Length
- 540 mm.
- L. Top Tube Length
- 565 mm.
- T. Head Tube Length
- 195 mm.
- P. Chainstay Length
- 405 mm.
- C. Wheel Base
- 987 mm.
- F. Bottom Bracket to front wheel center
- 592 mm.
- X. Head Tube Angle
- 73,5°
- Z. Seat Tube Angle
- 73,2°
- S. Stack
- 596 mm.
- R. Reach
- 385 mm.
- B. Seat Tube Length
- 570 mm.
- L. Top Tube Length
- 580 mm.
- T. Head Tube Length
- 210 mm.
- P. Chainstay Length
- 405 mm.
- C. Wheel Base
- 1005 mm.
- F. Bottom Bracket to front wheel center
- 610 mm.
- X. Head Tube Angle
- 73,5°
- Z. Seat Tube Angle
- 73°
- S. Stack
- 609 mm.
- R. Reach
- 394 mm.
