Road

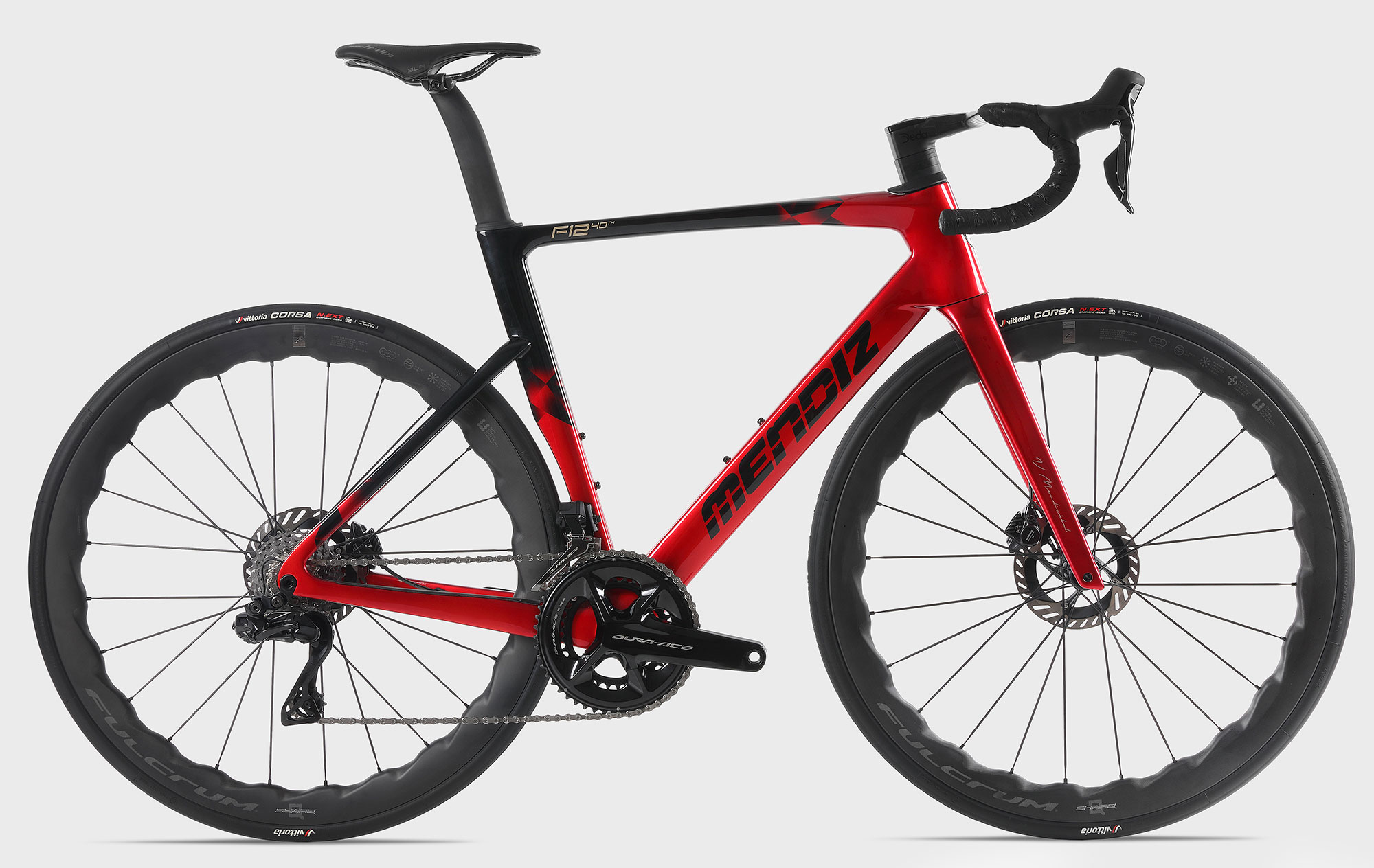

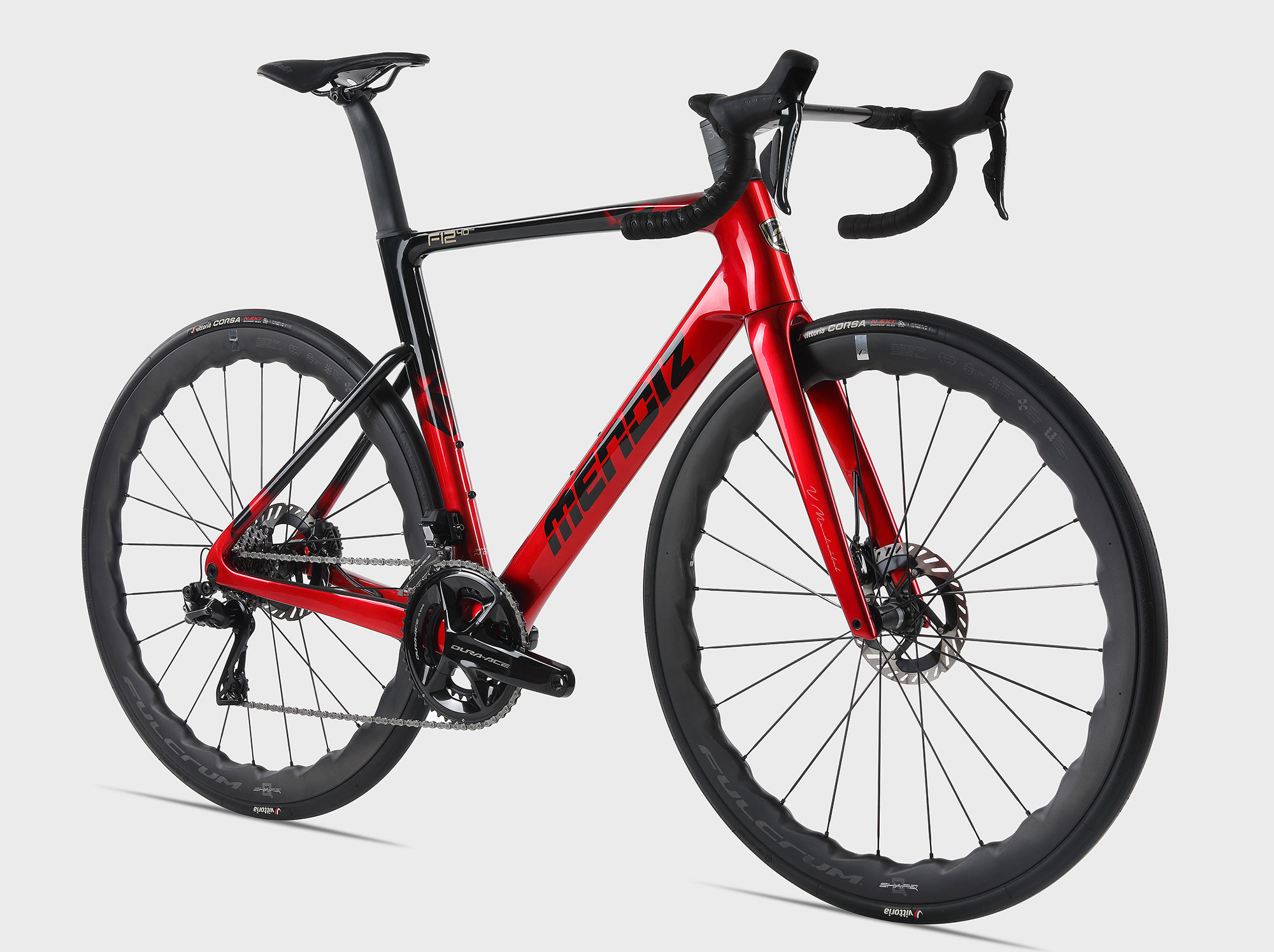

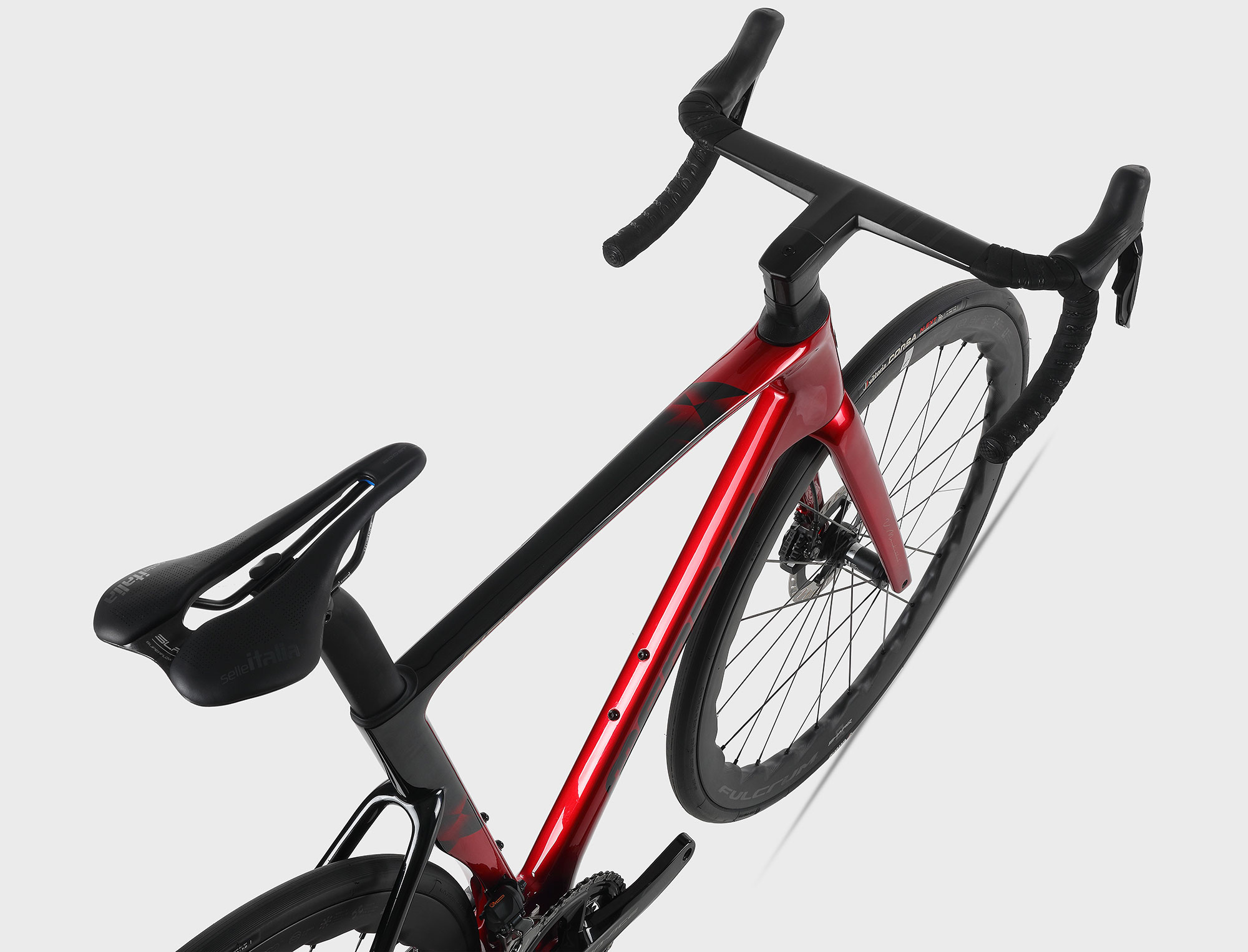

Configurator F12 40th anniversary
Select model
- Rear Derailleur
- Shimano Dura-Ace Di2 Hidráulica
- Front Derailleur
- Shimano Dura-Ace Di2
- Shift Lever
- Shimano Dura-Ace Di2
- Cranks
- Shimano Dura-Ace 50-34
- Cassette
- Shimano Dura-Ace 11-30
- Brakes
- Shimano Dura-Ace Hidráulico 160 mm/160 mm
- Brake Rotor
- Shimano Dura-Ace
- Wheel
- Fulcrum Sharq

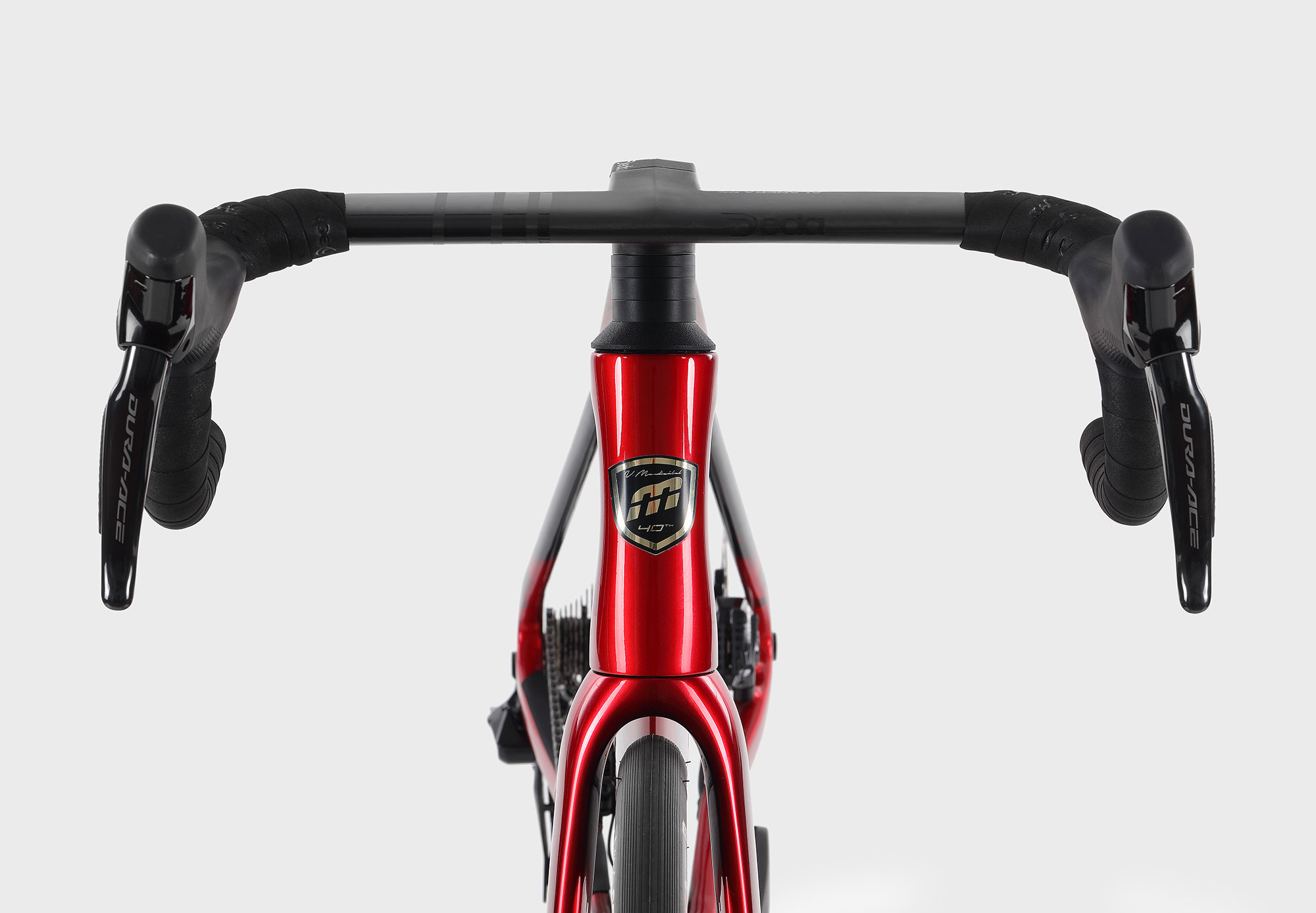

- Handlebar
- Deda Alanera RS
- Seatpost
- Carbono F12
- Saddle
- Selle Italia SLR

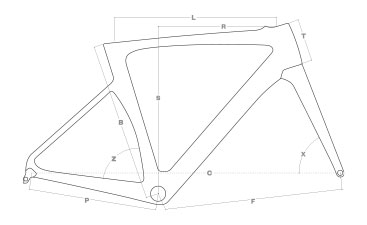

Choose size
- B. Seat Tube Length
- 460 mm.
- L. Top Tube Length
- 514 mm.
- T. Head Tube Length
- 120 mm.
- P. Chainstay Length
- 405 mm.
- C. Wheel Base
- 982 mm.
- F. Bottom Bracket to front wheel center
- 577 mm.
- X. Head Tube Angle
- 71.5°
- Z. Seat Tube Angle
- 75°
- S. Stack
- 519 mm.
- R. Reach
- 375 mm.
- B. Seat Tube Length
- 490 mm.
- L. Top Tube Length
- 536 mm.
- T. Head Tube Length
- 140 mm.
- P. Chainstay Length
- 405 mm.
- C. Wheel Base
- 976 mm.
- F. Bottom Bracket to front wheel center
- 581 mm.
- X. Head Tube Angle
- 72.5°
- Z. Seat Tube Angle
- 74°
- S. Stack
- 541 mm.
- R. Reach
- 381 mm.
- B. Seat Tube Length
- 520 mm.
- L. Top Tube Length
- 548 mm.
- T. Head Tube Length
- 160 mm.
- P. Chainstay Length
- 405 mm.
- C. Wheel Base
- 978 mm.
- F. Bottom Bracket to front wheel center
- 583 mm.
- X. Head Tube Angle
- 73.1°
- Z. Seat Tube Angle
- 73.5°
- S. Stack
- 562 mm.
- R. Reach
- 382 mm.
- B. Seat Tube Length
- 550 mm.
- L. Top Tube Length
- 565 mm.
- T. Head Tube Length
- 180 mm.
- P. Chainstay Length
- 405 mm.
- C. Wheel Base
- 988 mm.
- F. Bottom Bracket to front wheel center
- 593 mm.
- X. Head Tube Angle
- 73.5°
- Z. Seat Tube Angle
- 73.25°
- S. Stack
- 583 mm.
- R. Reach
- 390 mm.
- B. Seat Tube Length
- 580 mm.
- L. Top Tube Length
- 587 mm.
- T. Head Tube Length
- 210 mm.
- P. Chainstay Length
- 405 mm.
- C. Wheel Base
- 1007 mm.
- F. Bottom Bracket to front wheel center
- 612 mm.
- X. Head Tube Angle
- 73.5°
- Z. Seat Tube Angle
- 73°
- S. Stack
- 611 mm.
- R. Reach
- 400 mm.
